Nyob rau hauv niaj hnub lub teeb yuag structural engineering, sandwich panels tau dhau los ua lub hauv paus thev naus laus zis thoob plaws hauv kev thauj mus los, kev tsim kho, kev thauj mus los, lub zog tauj dua tshiab, marine, thiab cov khoom siv lag luam. Cov vaj huam sib luag no ua tiav qhov tshwj xeeb ntawm kev ua haujlwm zoo los ntawm kev sib txuas nyias, siab - lub ntsej muag lub ntsej muag nrog cov khoom siv sib sib zog nqus. Thaum cov nplooj ntawv ntsej muag feem ntau tau txais kev saib xyuas tseem ceeb vim lawv pom lub luag haujlwm hauv kev nqa tensile thiab compressive loads, lubcore ntomyog ib qho tseem ceeb tshaj plaws -thiab qee zaum nkag siab tsis zoo- cov kev txwv tswj hwm kev ua haujlwm ntawm vaj huam sib luag.
Core density ncaj qha cuam tshuamvaj huam sib luag nruj, qhov hnyav, lub zog, durability, thiab nqi. Xaiv qhov tseem ceeb ntawm qhov ceev tsis yog qhov teeb meem ntawm kev xaiv lub teeb pom kev zoo; es, nws yog kev lag luam engineering-tawm qhov sib npaug ntawm cov kev xav tau ntawm cov tshuab, cov kev pabcuam, kev txwv kev tsim khoom, thiab kev ua haujlwm ntawm lub neej.
Lub hauv paus ntawm Sandwich Panel Mechanics
Basic Structure ntawm Sandwich Vaj Huam Sib Luag
Lub vaj huam sib luag sandwich muaj peb yam tseem ceeb:
Ob daim nyias nyias, tawv ntsej muag
Ib lub teeb yuag core khoom
Adhesive bond txheej ntawm lub ntsej muag thiab cov tub ntxhais
Cov nplooj ntawv lub ntsej muag muaj nyob hauv - dav hlau tensile thiab compressive stresses, thaum lub hauv paus tseem ceeb tiv thaiv shear loads thiab tswj kev sib cais ntawm lub ntsej muag.
Yog vim li cas cov tub ntxhais tseem ceeb tshaj nws qhov hnyav qhia
Txawm hais tias cov tub ntxhais feem ntau tsuas yog ib feem me me ntawm tag nrho cov vaj huam sib luag loj, nws ua lub luag haujlwm tsis txaus ntseeg hauv kev txiav txim siab:
Khoov nruj
Shear rigidity
Buckling kuj
Kev cuam tshuam kev ua haujlwm
Thermal thiab acoustic rwb thaiv tsev
Core density yog ib qho tseem ceeb parameter uas tswj cov khoom no.
Nkag siab Core Density
Txhais ntawm Core Density
Core density yog txhais raws li qhov loj ntawm ib chav tsev ntim ntawm cov khoom tseem ceeb, feem ntau qhia hauv:
kg/m³
lb/ft³
Nws qhia txog ob qho tib si cov khoom muaj pes tsawg leeg thiab cov qauv sab hauv ntawm cov tub ntxhais, xws li cell loj, phab ntsa thickness, los yog foam expansion ratio.
Yam Ntxim Saib Ntxim Ua Ntau Yam rau Hom Core Hom
Cov ntaub ntawv tseem ceeb sib txawv nthuav dav ntau qhov ntom ntom:
Polymer ua npuas ncauj cores: tsawg mus rau nruab nrab ceev
Honeycomb cores: tsawg heev mus rau nruab nrab ceev
Balsa ntoo cores: nruab nrab ntom
Cov qauv ua npuas ncauj cores: nruab nrab mus rau siab ceev
Txhua qhov sib txawv ntawm qhov sib txawv sib txawv ntawm qhov sib txawv ntawm qhov tawv, lub zog, thiab qhov hnyav.
Kev sib raug zoo ntawm Core Density thiab Vaj Huam Sib Luag Qhov hnyav
Kev koom tes ncaj qha ntawm Core Density rau Vaj Huam Sib Luag
Tag nrho qhov hnyav ntawm lub vaj huam sib luag sandwich tuaj yeem qhia tau tias:
Lub ntsej muag daim ntawv loj
Core loj
Adhesive loj
Ua kom cov tub ntxhais ceev ceev nce cov tub ntxhais loj linearly nrog thickness. Txawm li cas los xij, tus txheeb ze cuam tshuam rau tag nrho cov vaj huam sib luag hnyav nyob ntawm cov tub ntxhais thickness thiab lub ntsej muag xaiv.
Vim li cas Core Density feem ntau muaj qhov hnyav hnyav dua li qhov xav tau
Nyob rau hauv ntau designs:
Cov nplooj ntawv ntsej muag dominate tag nrho pawg
Ua kom cov tub ntxhais ntom ntom me ntsis tuaj yeem muaj qhov cuam tshuam me me rau tag nrho qhov hnyav
Rau cov vaj huam sib luag tuab, ua kom cov tub ntxhais ceev tuaj yeem txo qhov hnyav tag nrho los ntawm kev ua kom lub ntsej muag nyias nyias lossis txo qhov kev txhawb nqa rau lwm qhov.
Qhov hnyav Optimization los ntawm kev xaiv ceev
Optimized designs feem ntau muaj xws li:
Tsawg-cov cores ntom rau cov tsis yog- cov vaj huam sib luag
Nruab nrab-cov cores ceev rau kev thauj khoom-cov kabmob
Localized siab- ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom
Kev xaiv qhov ntom ntom ntom ntom txo qhov hnyav thaum ua tau raws li qhov xav tau ntawm kev siv tshuab.
Core Density thiab Bending Stiffness
Bending Stiffness Fundamentals
Bending nruj ntawm lub vaj huam sib luag sandwich nyob ntawm qhov tseem ceeb ntawm:
Lub ntsej muag daim ntawv modulus
Qhov deb ntawm daim ntawv ntsej muag
Core shear modulus
Thaum cov tub ntxhais qhov ceev tsis ncaj qha nce lub ntsej muag tawv, nws muaj zog cuam tshuam rau shear rigidity thiab lub ntsej muag sib cais.
Core Density cuam tshuam li cas Shear Modulus
Hauv ntau cov ntaub ntawv tseem ceeb:
Higher density correlates nrog ntau dua shear modulus
Nce shear modulus txo shear deformation nyob rau hauv load
Tsawg-cov cores ceev yuav ua rau muaj kev cuam tshuam ntau dhau, txo cov kev ua haujlwm zoo ntawm lub vaj huam sib luag txawm tias cov nplooj ntawv lub ntsej muag muaj zog.
Shear Deformation vs. Bending Deformation
Tag nrho cov vaj huam sib luag deflection muaj xws li:
Khoov deformation (lub ntsej muag)
Shear deformation (tub ntxhais)
Raws li cov tub ntxhais ceev ceev nce, shear deformation txo qis, ua rau muaj kev ua haujlwm zoo dua qub, tshwj xeeb tshaj yog rau luv luv -span panels.

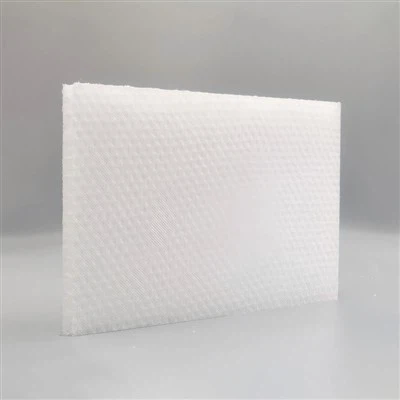

PP Honeycomb nrog Non{0}}Woven Fabric

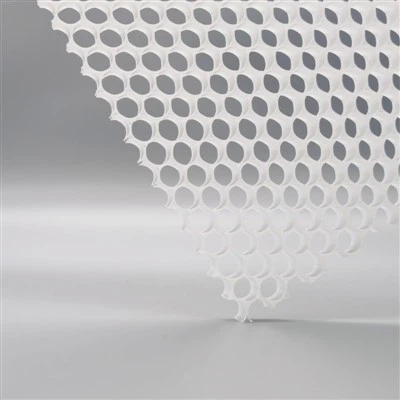

Qhib Cell PP Honeycomb Core
Core Density thiab Vaj Huam Sib Luag Thickness Trade-Offs
Thickness vs. Density: Ob Txoj Kev mus rau Stiffness
Cov engineers tuaj yeem ua rau kom muaj zog ntawm vaj huam sib luag los ntawm:
Nce core thickness
Nce core ntom
Txhua txoj hauv kev muaj qhov zoo thiab qhov txwv.
Tsawg-Density, Thick Cores
Qhov zoo:
Cov tawv nqaij zoo heev - rau - qhov hnyav piv
Zoo thermal rwb thaiv tsev
Kev txwv:
Tsawg compressive zog
Muaj kev pheej hmoo ntawm kev sib tsoo hauv zos
Siab -Density, Thin Cores
Qhov zoo:
Siab compressive thiab shear zog
Zoo dua tiv thaiv rau taw tes loads
Kev txwv:
hnyav dua
Txo cov rwb thaiv tsev ua haujlwm
Optimum designs feem ntau sib npaug thickness thiab ceev es tsis yog maximizing tog twg los.
Kev cuam tshuam ntawm Core Density ntawm Load-Bearing Capacity
Core Shear Strength
Shear zog feem ntau nce nrog cov tub ntxhais ceev vim:
Thicker cell phab ntsa
Cov khoom ntim ntau dua
Txo qhov luaj li cas
Tsawg-cov cores ceev yuav ua tsis tau nyob rau hauv shear ua ntej cov nplooj ntawv lub ntsej muag ncav cuag kev txwv kev ntxhov siab.
Compressive Strength thiab ntsej muag Wrinkling Resistance
Siab dua -cov cores ceev muab:
Kev txhawb nqa zoo dua rau compressive ntsej muag nplooj ntawv
Txo kev pheej hmoo ntawm lub ntsej muag wrinkling lossis buckling
Qhov no yog qhov tseem ceeb tshwj xeeb tshaj yog nyob rau hauv cov vaj huam sib luag uas raug compressive loads lossis siab dabtsi yog khoov lub sijhawm.
Point Load thiab Local Stress Resistance
Core density tseem ceeb influences:
Cov kabmob muaj zog hauv qab fasteners
Resistance rau cov khoom mounting loads
Local indentation kev ua tau zoo
Cov cores siab dua los yog cov khoom siv hauv zos feem ntau xav tau ntawm cov ntsiab lus qhia kev thauj khoom.
Core Density thiab Dynamic Performance
Vibration thiab Modal Behavior
Core density cuam tshuam:
Ntuj zaus
Damping yam ntxwv
Higher-density cores increase stiffness but may also increase mass, influencing vibration response in complex ways.
Fatigue Resistance
Nruab nrab-cov cores ceev feem ntau muab kev ua haujlwm qaug zog zoo dua los ntawm:
Txo cyclic shear strain
Txhim kho kev faib khoom thauj
Tsawg heev -cov cores ceev yuav muaj kev puas tsuaj rau kev qaug zog hauv qab kev thauj khoom dua.
Thermal, Acoustic, thiab Environmental Considerations
Thermal rwb thaiv tsev Performance
Tsawg-cov cores ceev feem ntau muab:
Tsawg thermal conductivity
Txhim kho kev ua haujlwm rwb thaiv tsev
Siab dua -cov cores ceev yuav cuam tshuam cov thermal efficiency, tshwj xeeb tshaj yog nyob rau hauv qhov kub thiab txias - tswj cov ntawv thov.
Acoustic Damping
Core density influences lub suab kis tau tus mob thiab kev co damping. Nruab nrab-cov cores ntom ntom feem ntau muab qhov sib npaug zoo ntawm qhov tawv thiab kev ua haujlwm ntawm acoustic.
Moisture Absorption thiab Environmental Stability
Siab dua -cov cores ceev yuav:
Absorb tsawg dua noo noo ib chav tsev ntim
Muab kev ruaj ntseg zoo dua
Txawm li cas los xij, ib puag ncig kev ua tau zoo nyob ntawm cov khoom siv tseem ceeb, tsis yog qhov ceev ib leeg.
Manufacturing thiab Processing Implications
Adhesive Consumption thiab ntub-Tawm
Core density cuam tshuam:
Adhesive nkag
Bond-kab thickness tswj
Tsawg heev - qhov ceev los yog qhib- cov cores ntawm tes yuav nqus cov nplaum ntau dhau, ua rau hnyav thiab nqi.
Lamination Pressure Sensitivity
Tsawg-cov cores ceev yog qhov yooj yim dua rau:
Crushing nyob rau hauv lamination siab
Thickness variation
Siab dua -cov cores ceev muaj qhov zoo dua qhov ruaj khov thaum lub sijhawm tsim khoom.
Kev tuav thiab kev puas tsuaj kuj
Siab dua -cov cores ceev yog feem ntau tiv taus rau kev puas tsuaj, thaum tsawg -cov cores ceev yuav tsum tau ceev faj tswj.
Tus nqi cuam tshuam ntawm Core Density Selection
Tus Nqi Khoom Siv vs. Tus Nqi Them Nqi
Siab dua -cov cores ntom ntom feem ntau muaj cov nqi khoom ntau dua, tab sis yuav txo tau:
Lub ntsej muag daim ntawv thickness
Reinforcement xav tau
Cov nqi kho mob
Lifecycle Cost Perspective
Optimizing core ntom yuav txo tau:
Kev ua tsis tiav
Kho zaus
Lub sijhawm poob
Tag nrho cov nqi ntawm lub neej feem ntau yog qhov kev ntsuas muaj txiaj ntsig ntau dua li cov khoom siv ib leeg.
Daim ntawv thov -Txheej ceev Optimization
Tsheb thauj mus los thiab cov vaj huam sib luag
Yam tseem ceeb tseem ceeb:
Qhov hnyav txo
Striffness rau loj spans
Kev cuam tshuam tsis kam
Nruab nrab- cov cores ntom ntom feem ntau yog nyiam rau qhov sib npaug.
Tsev thiab Vaj Huam Sib Luag
Yam tseem ceeb tseem ceeb:
Thermal rwb thaiv tsev
Dimensional stability
Ntev - lub sij hawm durability
Tsawg- cov cores ntom nrog cov tuab txaus yog feem ntau siv.
Cov cuab yeej siv thiab flooring panels
Yam tseem ceeb tseem ceeb:
Point load kuj
Kev ua haujlwm qaug zog
Kev nyab xeeb margins
Siab dua -cov cores ceev los yog hybrid designs feem ntau yuav tsum tau.
Cov kev xav tsis zoo txog Core Density
"Lower Density Ib txwm zoo dua"
Thaum tsis tshua muaj qhov hnyav txo qhov hnyav, nws tuaj yeem cuam tshuam nruj, lub zog, thiab kav ntev.
"Higer Density Ib txwm txhais tau tias muaj zog dua panels"
Tshaj li ib qho taw tes, nce ceev yields txo qis rov qab thiab tuaj yeem nce qhov hnyav yam tsis muaj qhov sib npaug sib npaug.
Tsim cov kev coj ua zoo tshaj plaws rau kev xaiv Core Density
Cov kev coj ua zoo tshaj plaws suav nrog:
Txhais cov ntaub ntawv muaj tseeb
Xav txog shear deformation nyob rau hauv kev xam qhov nro
Ntsuas cov ntsiab lus load
Sib npaug thermal thiab mechanical xav tau
Validating los ntawm kev xeem
Kev ntsuam xyuas thiab kev lees paub ntawm qhov ntom ntom ntom
Mechanical Testing
Cov kev ntsuam xyuas muaj xws li:
Khoov khov kho
Kev ntsuam xyuas lub zog shear
Kev ntsuam xyuas compression
Kev ntsuas tus qauv
Kev kuaj lub cev tseem ceeb tseem ceeb los xyuas qhov kev kwv yees theoretical thiab ua kom ntseeg tau tias kev ua tau zoo.
Core Density li Strategic Design Lever
Core density yog ntau dua li cov khoom siv yooj yim tshwj xeeb -nws yog lub tswv yim tsim qib uas cuam tshuam ncaj qha rau vaj huam sib luag, qhov hnyav, kav ntev, kev tsim khoom, thiab tus nqi. Los ntawm kev nkag siab tias qhov ceev cuam tshuam li cas rau shear rigidity, dabtsi yog khoov kev ua tau zoo, load- bearing peev, thiab ib puag ncig tus cwj pwm, engineers muaj peev xwm txiav txim siab uas yuav optimize tag nrho cov system kev ua tau zoo.
Qhov zoo tshaj plaws sandwich vaj huam sib luag tsim tsis tso siab rau qhov siab tshaj. Hloov chaw, lawv ua tiav qhov sib npaug- xaiv qhov tseem ceeb ntom ntom uas ua tau raws li cov kev xav tau ntawm cov tshuab thaum txo qis qhov hnyav thiab tus nqi. Los ntawm kev ua tib zoo tshuaj xyuas, kev sim, thiab daim ntawv thov- kev ua kom zoo dua qub, cov tub ntxhais qhov ceev dhau los ua ib qho cuab yeej muaj zog rau kev xa cov qib siab - kev ua tau zoo sib xyaw ua ke thoob plaws ntau qhov kev lag luam.
